FCS II Harley Mid Tri Fin Set

This is Harley's preferred fin set that's spec'd to work on longer boards and encourages a more progressive style of mid-length surfing.

Product In Stock

Looking to save a bundle?

Click here to shop bundles and save 15% off RRP

  • Overview

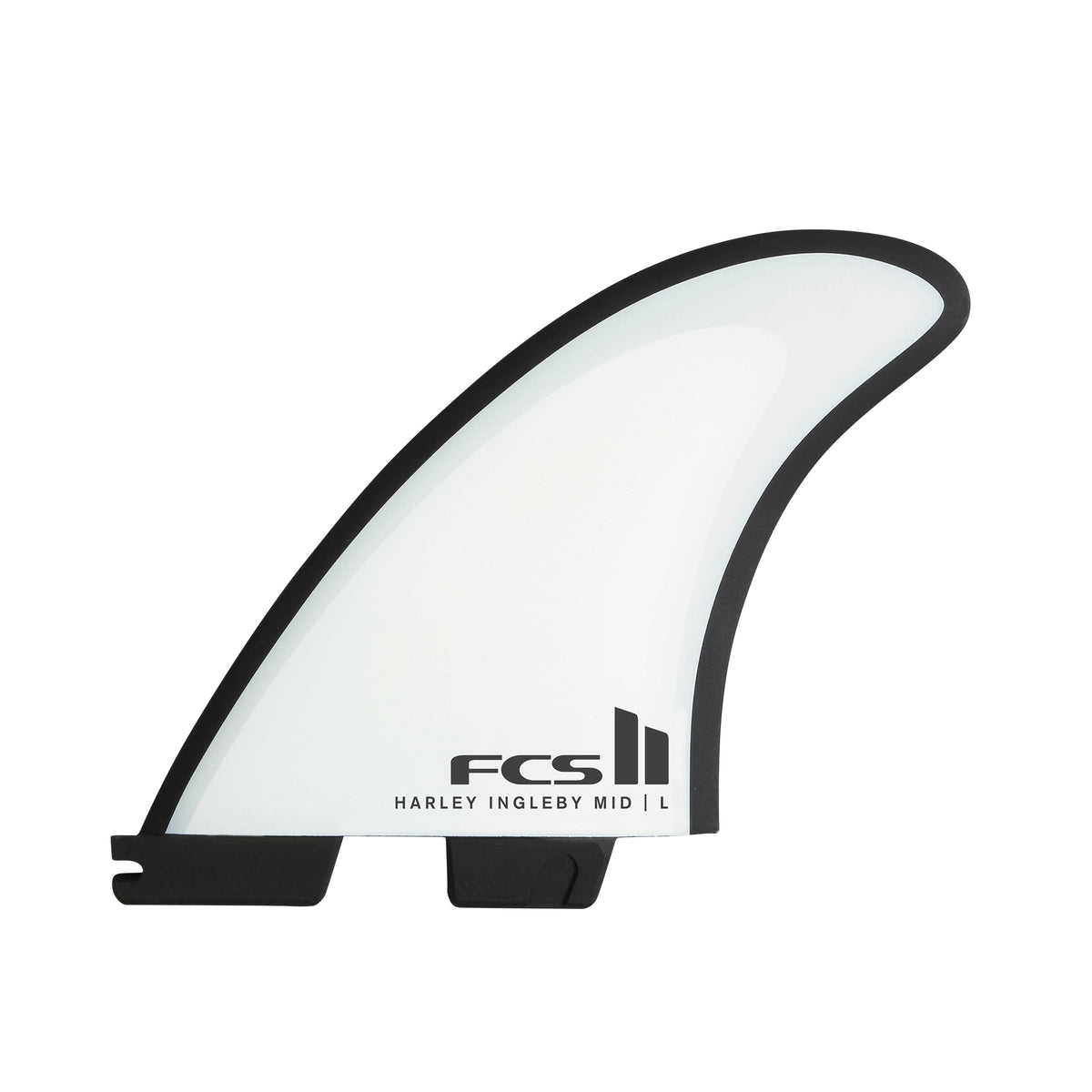

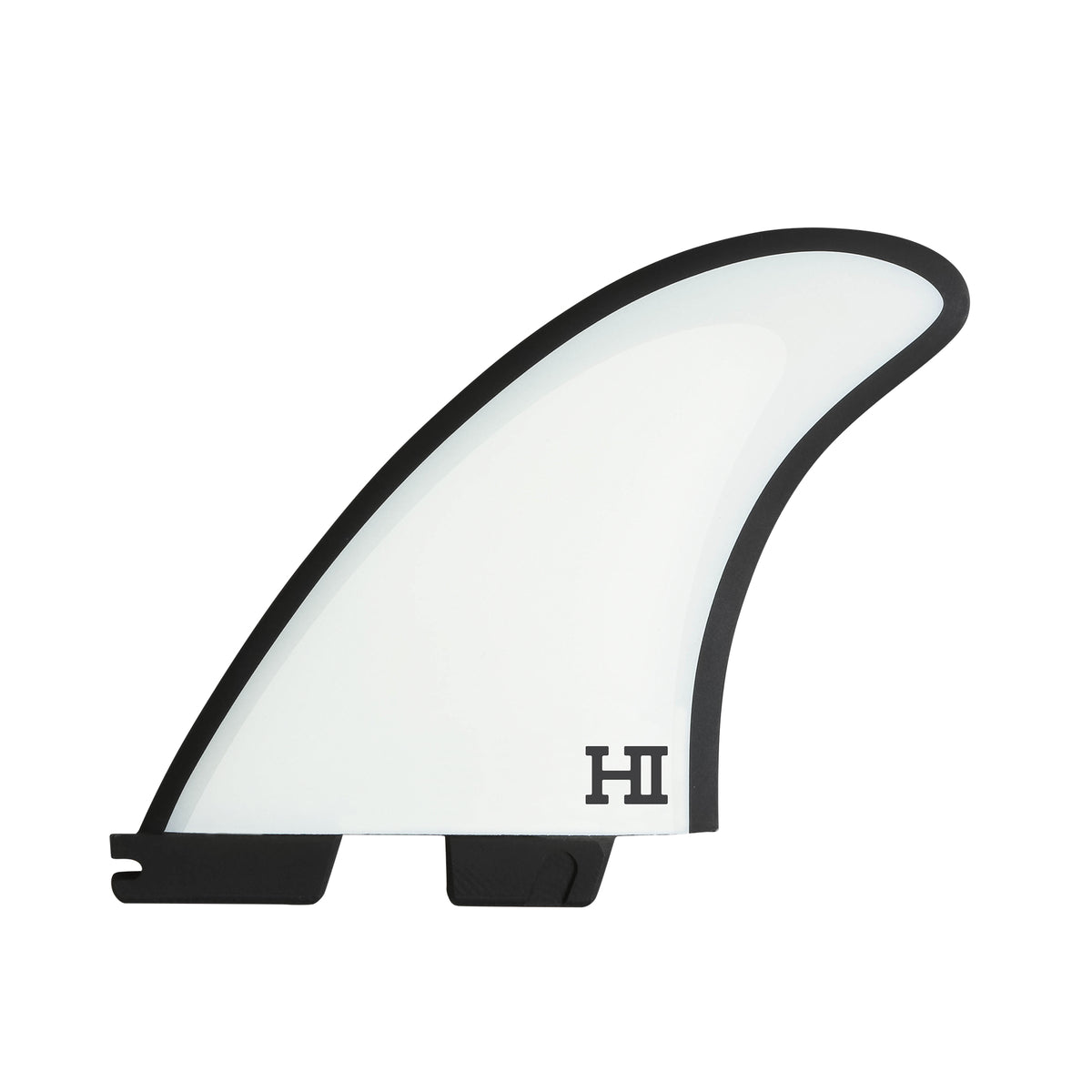

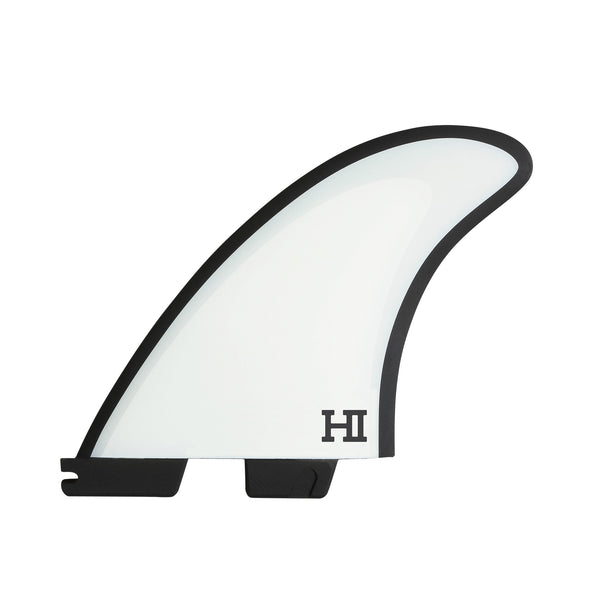

    Harley Ingleby's Mid 6 and Moe mid-length models have become some of the most popular in this category. This is Harley's preferred fin set that's spec'd to work on longer boards and encourages a more progressive style of mid-length surfing. HI also rides this set on in other hybrid shapes. The HI Mid set can be applied to any mid-length, or ridden as a Tri-Quad setup with the addition of the Harley Mid Quad Rear Set.

    The set uses the Reactor Large thruster template. As a thruster, this pivotal set encourages tighter radius turns on these longer boards due to the upright nature of the fins. Designed to offer a feeling of control, with the freedom to surf radically on a mid-length.


    • Designed for mid-lengths and hybrids
    • Reactor Large
    • Performance Core


    Board Types

    • Designed to fit the FCS II Fin System.
    • Performance boards with deep concaves and moderate-to-extreme rocker.

    Fin Family

    • Reactor



  • Performance Core

    Performance Core (PC) fins are made using a multi-layered resin transfer molding process. The flex pattern in PC fins extends progressively from the base through to the tip, helping the surfer to maintain drive and hold through a turn. This versatile fin material is light, and can be used in a variety of different conditions.


  • LARGE (75Kg - 90Kg / 165 - 200 Lbs)

     Fin

    Base (inches)

    Base (mm)

    Depth (inches)

    Depth (mm)

    Area (inches)

    Area  (mm)

    Sweep Deg°

    Foil

    Front  4.45 112.9 4.70 119.3 16.03 10341 32.0° Flat
    Centre  4.40 111.7 4.54 115.2 14.80 9550 32.4° 50/50

    View the FCS Fin Data page for Base/Depth/Area/Foil information.



  •
